Specs |
Overall Gain |
Lo-Gain: 64dB; Hi-Gain: 74dB |
RIAA Accuracy |
±.03 dB, 20 Hz to 20 kHz |
Frequency Response |
-3 dB @ 0.5 Hz and 180 kHz |
Common Mode Rejection Ratio |
130 dB (@ 60 Hz) |
Total Harmonic Distortion |
< .015, 20 Hz to 20 kHz, 5 V output level |
Output Noise |
(IEC A Weighted) Lo-Gain < 59 Microvolts; Hi-Gain < 60 Microvolt |
Cartridge Loading Equivalent Resistance |
Lo-Gain, Lo-Impedance 250 ohms; Lo-Gain, Hi-Impedance 400 ohms; Hi-Gain, Lo-Impedance 30 ohms; Hi-Gain, Hi-Impedance 50 ohms |
Power Requirements |
± 12-14 Volts DC, 40 Milliamps |

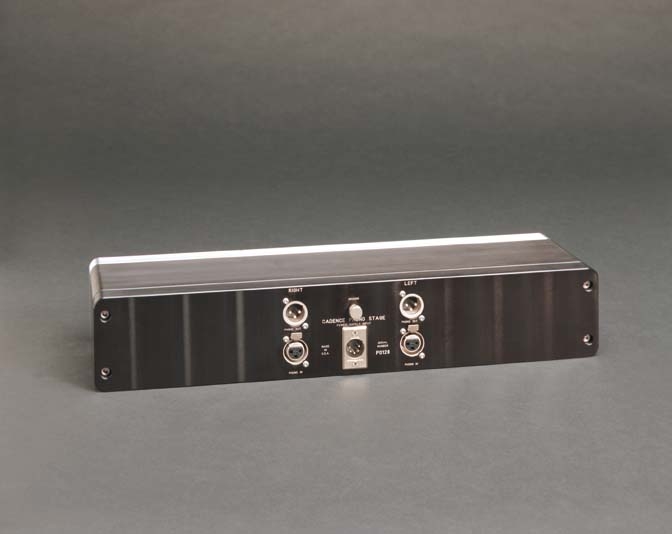

Input/Outputs |
Balanced (XLR), 1 per channel
Unbalanced (XLR), 1 Pair XLR to RCA adapters included
|
Preamplifier Weight |
27 lbs (12 kg |
Overall Preamplifier Dimensions (H) x (W) x (D) |
17.5 in (W) x 5.1 in (D) x 3.15 in (H); 44.5 cm (W) x 13.0 cm (D) x 8.0 cm (H) |
| |
Because Jeff Rowland Design Group is constantly analyzing new design improvements, we reserve the right to change or modify product specifications without notice or obligation. |
